Home > Products > Antenna products > BeiDou External Antenna

Product Introduction

Model：

GBA-H01

Product Introduction：

Product Description ： 1、BeiDou Hign Gain Antenna，dimension：120mmX100mm； 2、High gain, high sensitivity, fast positioning supported； 3、Mounting Method：pole； 4、Cable length：RG58(0-30m)； 5、The utility model can be wi

Product description

Product Description：
1、BeiDou Hign Gain Antenna，dimension：120mmX100mm；
2、High gain, high sensitivity, fast positioning supported；
3、Mounting Method：pole；
4、Cable length：RG58(0-30m)；
5、The utility model can be widely used in ship navigation equipment, base station navigation and positioning equipment and production line positioning test；

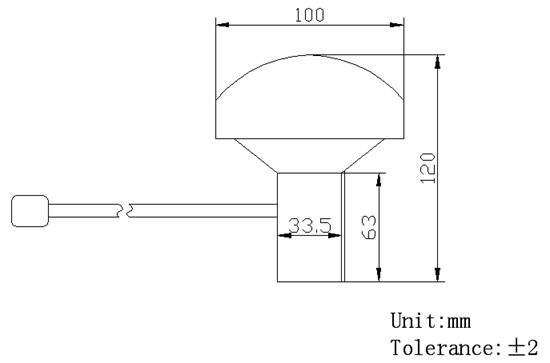

Product Dimension：

Product Introduction：

Antenna	Center Frequency	L1:1575.42±1.023 MHz B1:1561.098±2 MHz
	Bandwidth	10MHz min
	Peak Gain	4dBic
	Axial Ratio	3.0dB max
	V.S.W.R	1.5dB max
	Impedance	50Ω
	Polarization	RHCP
LNA	Center Frequency	1568±1.023MHz
	Gain	L1:37±2 dB B1:37±2 dB
	Noise Figure	1.5dB max
	Ex-band Attenuation	40dB@CF+60MHz/40dB@CF-60MHz
	Voltage	DC 3.0~5.0V
	Current	16±2 mA
	V.S.W.R	2.0dB max
Mechanical	Cable	RG58
	Connector	BNC/TNC/SMA or others
	Radome Material	ABS
	Ingress Protection	IP67
	Mounting Method	pole
Environmental	Operating Temperature	-40℃ to +85℃
	Relative Humidity	Up to 95℃
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
