Home > Products > Module products > BeiDou Module

Product Introduction

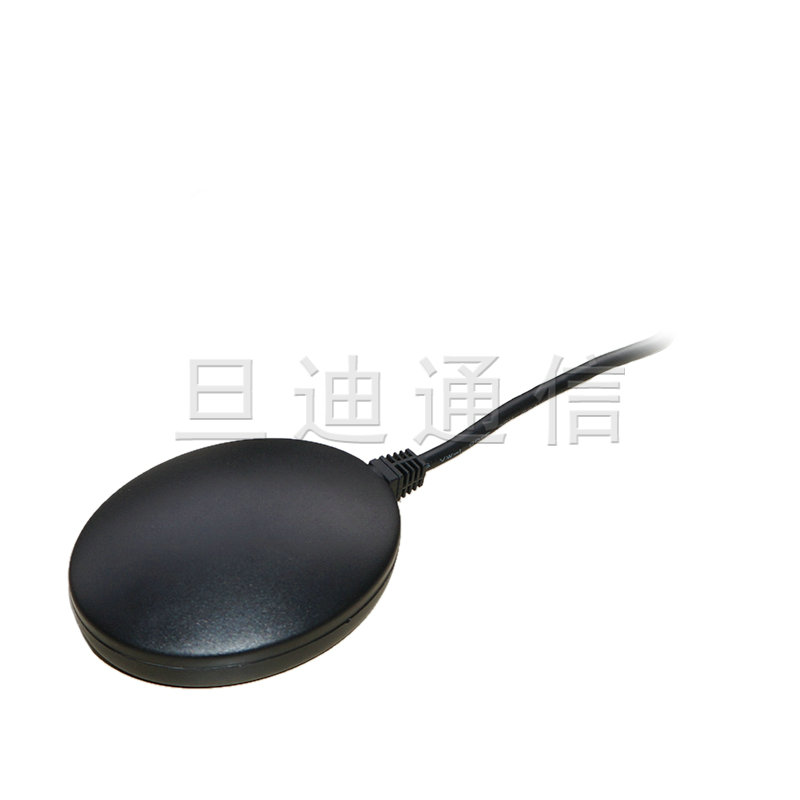

Model：

GBM-M01

Product Introduction：

Product Description ： 1、Integrated GPS module and GPS antenna as one of the devices to support Beidou, GPS remote； 2、High performance, low power consumption, fast positioning, dimension：68.0mmX54.0mm X 20.0mm； 3、Mounting Metho

Product description

Product Description：
1、Integrated GPS module and GPS antenna as one of the devices to support Beidou, GPS remote；
2、High performance, low power consumption, fast positioning,
dimension：68.0mmX54.0mm X 20.0mm；
3、Mounting Method：USB/RS232/UART or others；
4、The utility model can be widely used in Beidou Positioning Equipment；

Product Dimension：

Product Introduction：

Chip	MediaTek MT3333
Frequency	GPS : L1 1575.42MHz,BD2: B1 1561.098MHz
Channels	Support 99 channels
Update rate	1Hz default
Sensitivity	Tracking	-163dBm (with external LNA)
Acquisition	Hot start (Open Sky)	1s (typical)
Acquisition	Cold Start (Open Sky)	35s (typical)
Position Accuracy	Autonomous	2.5m CEP(50%)
Limit value	Max. Altitude	< 18,000 m （Max）
Limit value	Max. Velocity	< 515 m/s （Max）
Protocol Support	NMEA 0183 ver 3.01	9600 bps, 8 data bits, no parity, 1 stop bits (default) 1Hz: GGA, GLL, GSA, RMC, VTG
Input Voltage	VCC	5.0±0.3V
Supply Current	Acquisition	50mA @5.0V (typical)
Temperature	Operating Temperature	-40 ~ +85℃
Temperature	Storage Temperature	-40 ~ +85℃
Weight	＜103g
