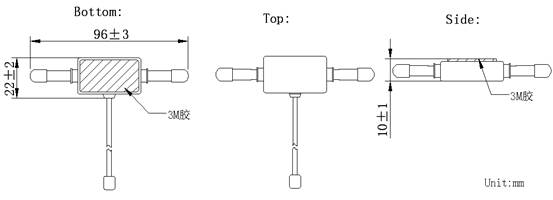

Product Description ： 1、Support GSM/GPRS/3G band； 2、Claw spring antenna，Adhesive； 3、Cable length：RG174(1-5m) 4、The utility model can be widely used in GSM/GPRS/3G remote terminal； Product Dimension ： Product Introducti
| Antenna |
Frequency Range |
824-894/1710-1990MZ 880-960/1710-1990MHz |
Peak Gain |
2dBi typ | |
| V.S.W.R | 2.0dB max | |
| Impedance | 50Ω | |
| Polarization | Linear | |
| Mechanical | Cable | RG174 |
| Connector | SMA/FAKRA or others | |
| Radome Material | ABS | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | -40℃ to +85℃ |
| Relative Humidity | Up to 95℃ | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
