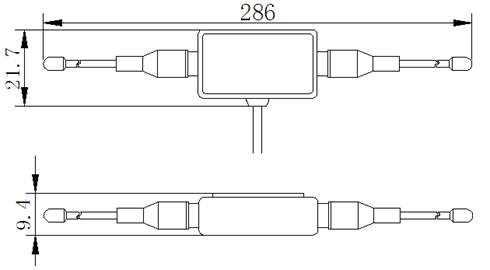

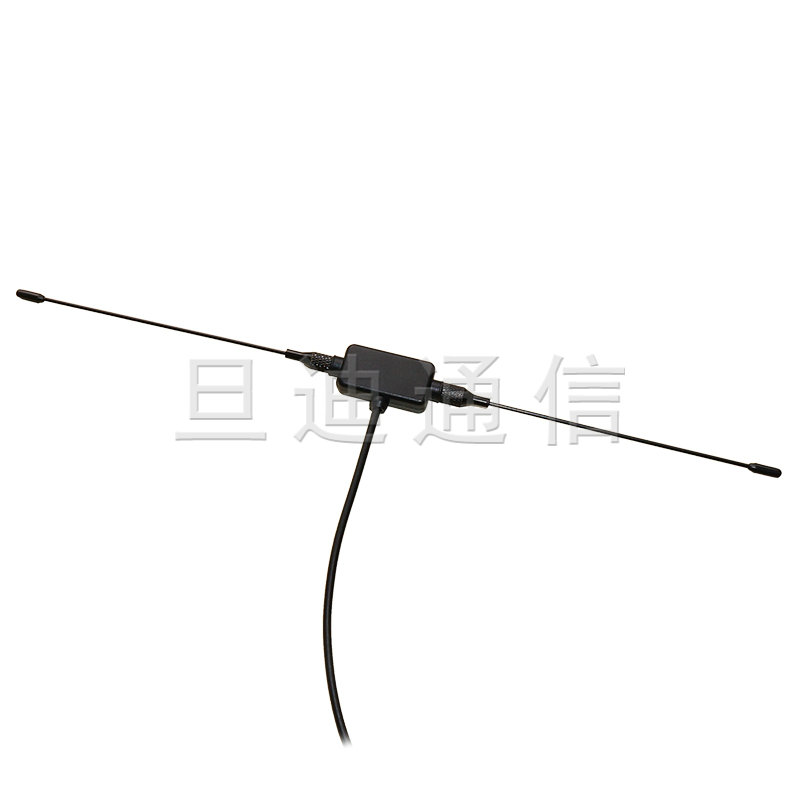

Product Description ： 1、Digital TV antenna，support 470-862MHz band； 2、Horn rod antenna，Adhesive； 3、length：RG174(1-5m)； 4、The utility model can be widely used in digital TV equipment terminal； Product Dimension ： Pr
| Antenna |
Frequency |
470-862MHz |
Peak Gain |
2dBic | |
| V.S.W.R | 2.0dB max | |
| Impedance | 50Ω | |
| Mechanical | Cable | RG174 |
| Connector | SMA or others | |
| Radome Material | ABS | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | -40℃ to +85℃ |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
