Home > Products > Antenna products > LTCC antenna

Product Introduction

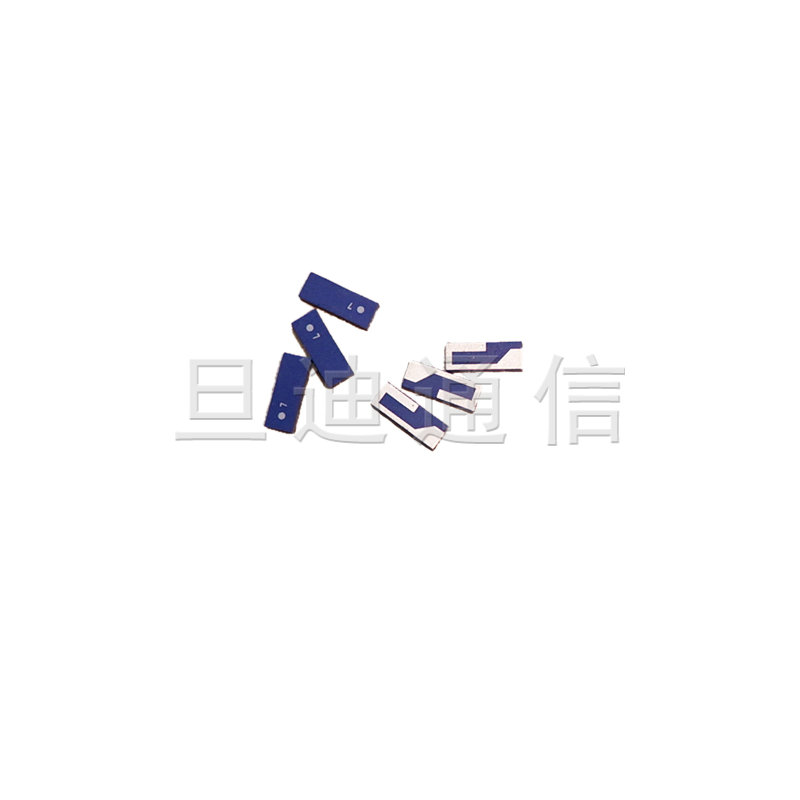

Model：

DD5320F1575/1602P

Product Introduction：

Product Description ： 1、High performance, high sensitivity, support GPS、Beidou、GLONASS band； 2、Ultra small size，dimension：5.30mmX2.00mmX1.10mm； 3、The utility model can be widely used in various types of mobile phones, al

Product description

Product Description：
1、High performance, high sensitivity, support GPS、Beidou、GLONASS band；
2、Ultra small size，dimension：5.30mmX2.00mmX1.10mm；
3、The utility model can be widely used in various types of mobile phones, all kinds of wearable devices, as well as various types of portable handheld navigation equipment；

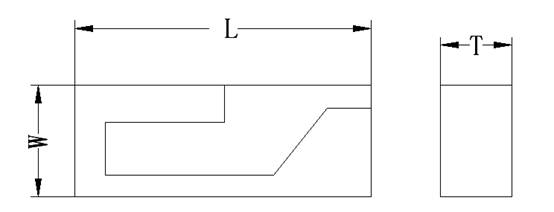

Product Dimension：

L(mm)	5.30±0.20
W(mm)	2.00±0.20
T(mm)	1.10±0.20

Product Introduction：

Antenna	Center Frequency	1575/1602 MHz
	Bandwidth	80MHz typ
	Peak Gain	1.45/1.46dBic typ
	V.S.W.R	1.5dB max
	Impedance	50Ω
	Azimuth Beamwidth	Omni-directional
Mechanical	Radome Material	ceramics
Environmental	Operating Temperature	-40℃ to +105℃
	Relative Humidity	-40℃ to +105℃
	Environmentally Friendly	ROHS Compliant
