Home > Products > Antenna products > Multifrequency Combination

Product Introduction

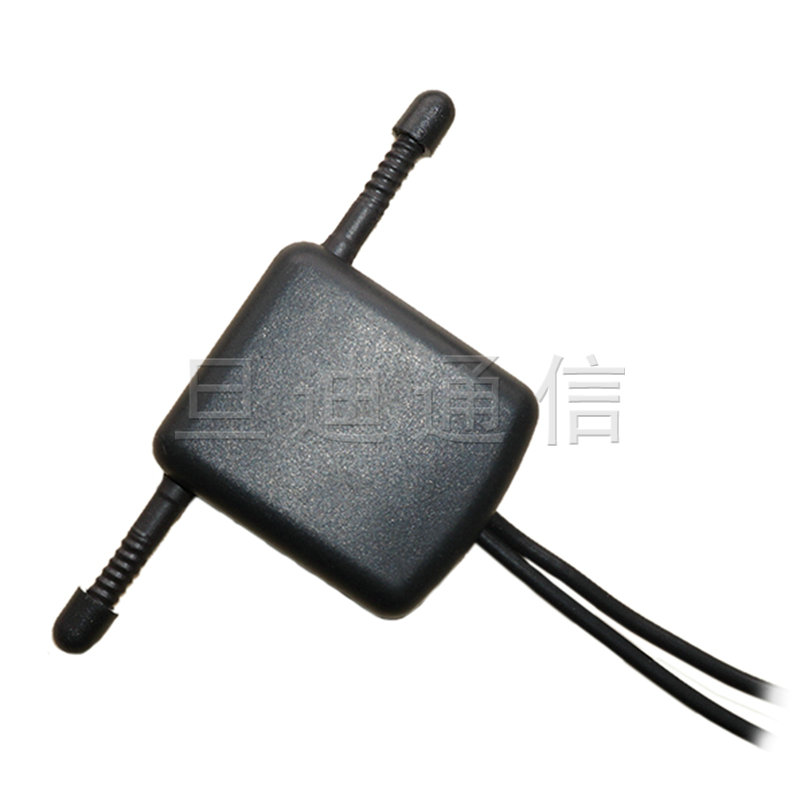

Model：

MCA-E02

Product Introduction：

Product Description ： 1、GPS +GSM Combination Antenna.，support GSM/GPRS/3G band； 2、Mounting Method：Mounting Method：Magnet/Adhesive； 3、Cable length：RG174(0-8m)； 4、Both factory-installed and aftermarket-installed GPS na

Product description

Product Description：
1、GPS +GSM Combination Antenna.，support GSM/GPRS/3G band；
2、Mounting Method：Mounting Method：Magnet/Adhesive；
3、Cable length：RG174(0-8m)；
4、Both factory-installed and aftermarket-installed GPS navigation and positioning equipment are supported.

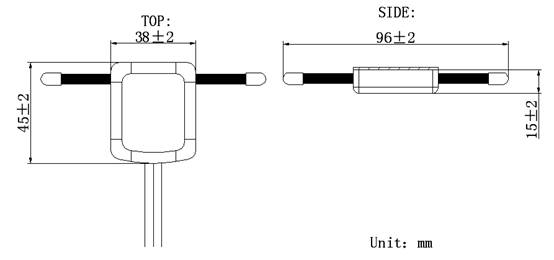

Product Dimension：

Product Introduction：

GPS	Antenna	Center Frequency	1575.42±1.023 MHz
		Bandwidth	10MHz min
		Peak Gain	2dBic
		Axial Ratio	3.0dB max
		V.S.W.R	1.5dB max
		Impedance	50Ω
		Polarization	RHCP
	LNA	Gain	30±2 dB
		Noise Figure	1.5dB max
		Ex-band Attenuation	12dB@CF+50MHz/16dB@CF-50MHz
		Voltage	DC 3.0~5.0V
		Current	5~15 mA
		V.S.W.R	2.0dB max
GSM		Frequency	824~960/1710~2170MHz
		V.S.W.R	＜2.5
		Polarization	Linear
		Gain	2dBi
		Impedance	50Ω
Mechanical		Cable	RG174
		Connector	SMA/FAKRA or others
		Radome Material	ABS
		Ingress Protection	IP67
		Mounting Method	Magnet/Adhesive
Environmental		Operating Temperature	-40℃ to +85℃
		Relative Humidity	Up to 95℃
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant
